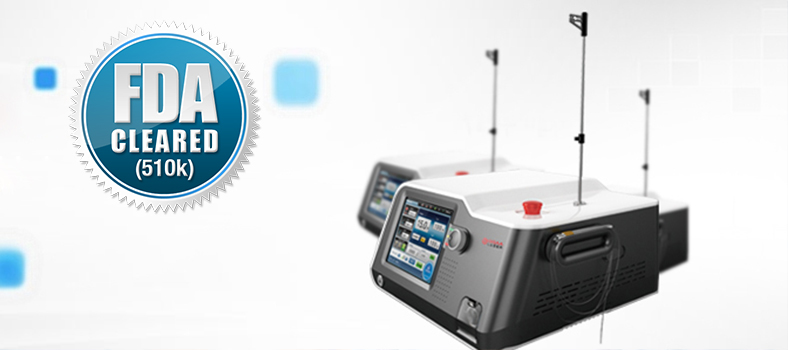

VELAS Medical Diode Laser Systems
VELAS series from GIGAA LASER offer you a multiple choice for your different clinic requirements. Surgical applications require a technology that offers equally effective ablation and coagulation options. VELAS series will offer you the wavelength options of 810nm, 940nm, 980nm, 1210nm, 1470nm and 1940nm, with CW, single pulse and pulsed mode, so that you could choose a laser which suits your need best.
According to the new statistics, medical diode laser systems in recent years are maintaining a high-speed growth. With the development of living standard of the people, it will replace the traditional treatment soon and we will meet a strong market. VELAS is the most stable system we have produced, with advanced and proven technique, high quality and good performance, many doctors appreciate the cheap price and the good effects. Compare with the traditional treatment, We call it new “laser scalpel”, because minimal invasive, less pain and low bleeding.
Meet a variety of clinical applications
With different kinds accessories, such as flexile fiber, handpeices with various shapes and lengths, micro-endoscope etc, the versatile system to extend and develop many clinical applications. Now we have involved in dentistry, endovenous laser treatment (EVLT), ENT, PLDD, liposuction, DEEP Tissue Therapy , veterinary and so on. Our laser systems have approved FDA, so we can provide the best product with our best service for every customer.
VELAS Features:
User-friendly interface
There have quick operation mode on the interface ,It is easy to set every parameter on interface.
Output power calibration at the end of fibers
High quality and reliability
Big color touch screen, Highly integrated and modular design, New design inside to make maintenance easy and low cost, Full accessories for clinic.
Reliable after sale service and training for distributor
Provide global dealer training program
Technical Specifications
| Laser Type | GaAlAs Diode Laser | |||||||||
| Model | VELAS | |||||||||
| Wavelength | 810nm | 1210nm | 980+1470nm | 1064nm | ||||||
| 940nm | 1470nm | |||||||||
| 980nm | 1940nm | |||||||||
| Maximum Power | 30W /60W | 6W-15W | 30W/45W | 30W/60W | ||||||
| Operation Mode | CW, Single, Repeat/Burst Pulse | |||||||||
| Pulse Duration | 10μs-3s | |||||||||
| Repetition Rate | 0.05Hz-20KHz | |||||||||
| Transmission System | Fibers of 200um, 400um, 600um and 800um with SMA905 connector | |||||||||
| Pilot Beam | Red Diode Laser Of 635nm, Power<5mW | |||||||||
| Control Mode | True Color Touch Screen | |||||||||
| Voltage/Current Rating | 110/220 VAC, 5A , 50/60 Hz | |||||||||
| Dimensions | 400(W)*385(L)*200(H) mm | |||||||||
| Weight | 13Kg | |||||||||
| Safety Compliance | ||||||||||
Specifications subject to change without notice.
